Product Dimensions 1.56"h x 4.88"w x 4.94"d

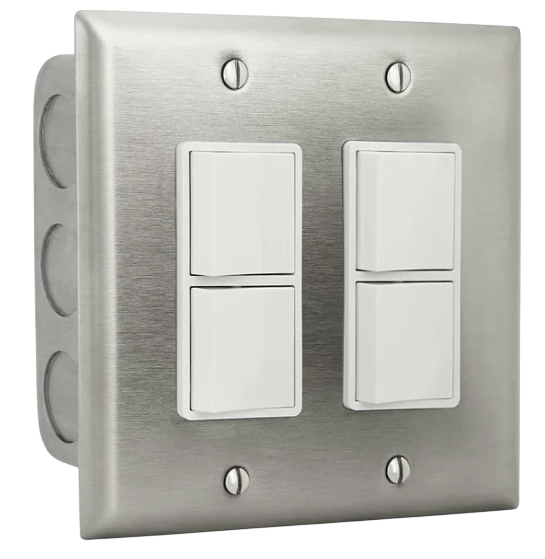

Infratechs Duplex/Stack Switches offer user-friendly operation for dual element heaters thats compatible with any budget. They are available in different configurations to meet the needs of your space.Read More
Compatible with Infratech Dual Element Heaters, CD-Series & WD-Series.
Range 120/277 VAC (20 amps max per switch).
Ability to turn on and off each element independently, providing effectively half power/full power capabilities.
Available in single or dual wall plate, flush mount or surface mount options, with or without weatherproof cover or box.
All components proudly made in the USA and supported by Infratechs exclusive Three Year Warranty.
General Specs | |
| Depth (in.) | 4.94 |
| Width (in.) | 4.88 |
| Height (in.) | 1.56 |
| Color | Stainless Steel |
| Made In | USA |
| Shipping Depth (in.) | 7 |
| Shipping Width (in.) | 7 |
| Shipping Height (in.) | 7 |
| Amp | 20 |
| Made In The USA | Yes |
| Color/Finish Name | Stainless Steel |
| Manufacturer Warranty | 3 Year |
| Product Weight (lbs.) | 3 |
