Product Dimensions 4.75"h x 30"w x 20"d

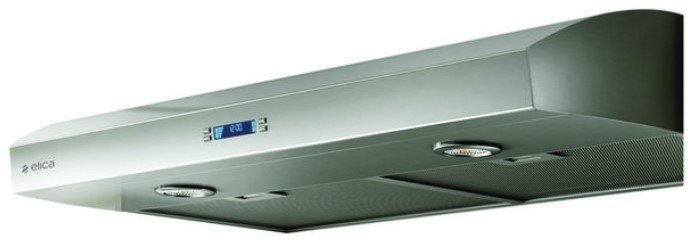

With a compact 4 3/4" height, Bellagio is an ideal choice where under-cabinet space is limited. Its upgraded 4-speed, 400 CFM internal blower provides sufficient ventilating power for most kitchens.Read More
For items that are out of stock please contact our store for more details and availability timelines.
View Options
View Options
Heat guard
Clean filter alarm
Replace filter alarm
Aluminum mesh filters are steps above competition, featuring triple-layered, anodized aluminum that is woven into a highly dense mesh.
An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
Enables users to reduce directly the maximum blower CFM to meet local code requirements.
Bellagio also offers the luxury and convenience of LED lighting with 2 intensities, dishwasher-safe anodized aluminum mesh filters and multi-function LCD controls. Available in 30" or 36" width, Bellagio is designed for standard ducted installation and can also be used as a recirculating system using the kit available as an accessory.
*The product images shown are for illustration purposes only and may not be an exact representation of the product.
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 4.75 |
| Duct Size (in.) | 10" x 3.25" Rectangular |
| Depth (in.) | 20 |
| Collection | Techne Series |
| Color | White |
| Manufacturer Warranty | 3 Year Parts & Labor |
| Color Finish Name | White |
| Range Hood Type | Under Cabinet |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Product Weight (lbs.) | 22.05 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 400 |
| Grease Filter Type | Aluminum Mesh |
| Bulb Type | LED |
| Filter Indicator Light | No |
| Sones Rating | 5.0 |
| Fan Speed Options | 4 |
| Vent Location | Top |
| Height Above Cooktop | 30 |
| Ventilation Direction | Horizontal |
| Shipping Depth (in.) | 9.8 |
| Shipping Width (in.) | 9.8 |
| Shipping Height (in.) | 24.33 |
| Width (cm) | 76.2 |
| Height (cm.) | 12.1 |
| Depth (cm.) | 50.8 |
| Height Above Cooktop Centimeter | 76.20 |
| Voltage | 120 |
| Amp | 3 |
| Frequency | 60 |
| Range Hood Features | Light, Removable Grease Filter |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
